Threaded straight connector

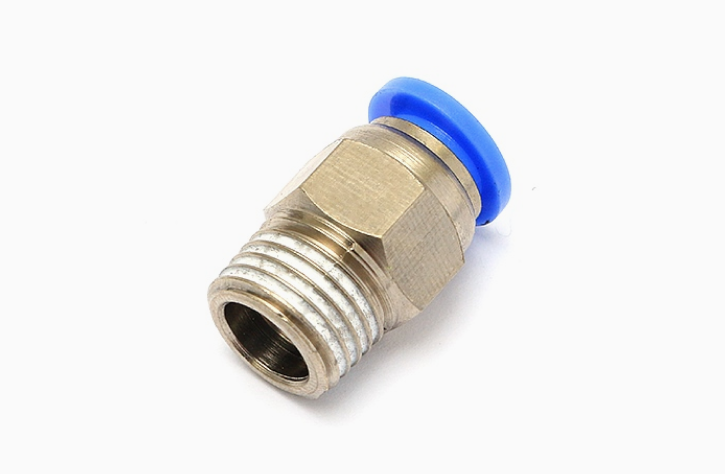

PC external thread straight connector, the outside (inside the hole) is hexagonal, which can improve the efficiency of laying air pipes in limited space. No loose pipes, no air leakage, precise size, pressure resistance, no buckle release, reliable installation, good sealing, and can easily connect or separate air pipes with just one action.
Product Content
Product Application:
(1) The quick-connect air pipe connection is used to conduct compressed air.
(2) It has various uses depending on the user environment.
(2) It has various uses depending on the user environment.
Features:
(1) The air tube can be easily connected or disconnected with just one movement.
(2) The PC model has a hexagonal exterior (inner hole), which can improve the efficiency of laying gas pipes in limited spaces.
(3) Made of high-quality copper rods, the electrolytic nickel plating process makes it hard, corrosion-resistant and not easy to oxidize.
(4) No loosening or leakage, precise size, pressure resistance and no stripping, reliable installation and good sealing.
(5) The threaded section has an O-ring or Teflon coating.
(6) High-quality sealing ring to prevent gas leakage.
(7) Tighten the high-quality retaining ring to firmly clamp the air pipe to prevent it from falling off.
(2) The PC model has a hexagonal exterior (inner hole), which can improve the efficiency of laying gas pipes in limited spaces.
(3) Made of high-quality copper rods, the electrolytic nickel plating process makes it hard, corrosion-resistant and not easy to oxidize.
(4) No loosening or leakage, precise size, pressure resistance and no stripping, reliable installation and good sealing.
(5) The threaded section has an O-ring or Teflon coating.
(6) High-quality sealing ring to prevent gas leakage.
(7) Tighten the high-quality retaining ring to firmly clamp the air pipe to prevent it from falling off.
Scope of application
Compressed air, water
Work Pressure
0-150PSI / 0-9.9kgf/cm² (0~990kPa)
Negative pressure
-29.5inHg / -750mmHg (-750Torr)
Operating temperature
32-140°F / 0-60°C
Using a trachea
Polyurethane and nylon tubing

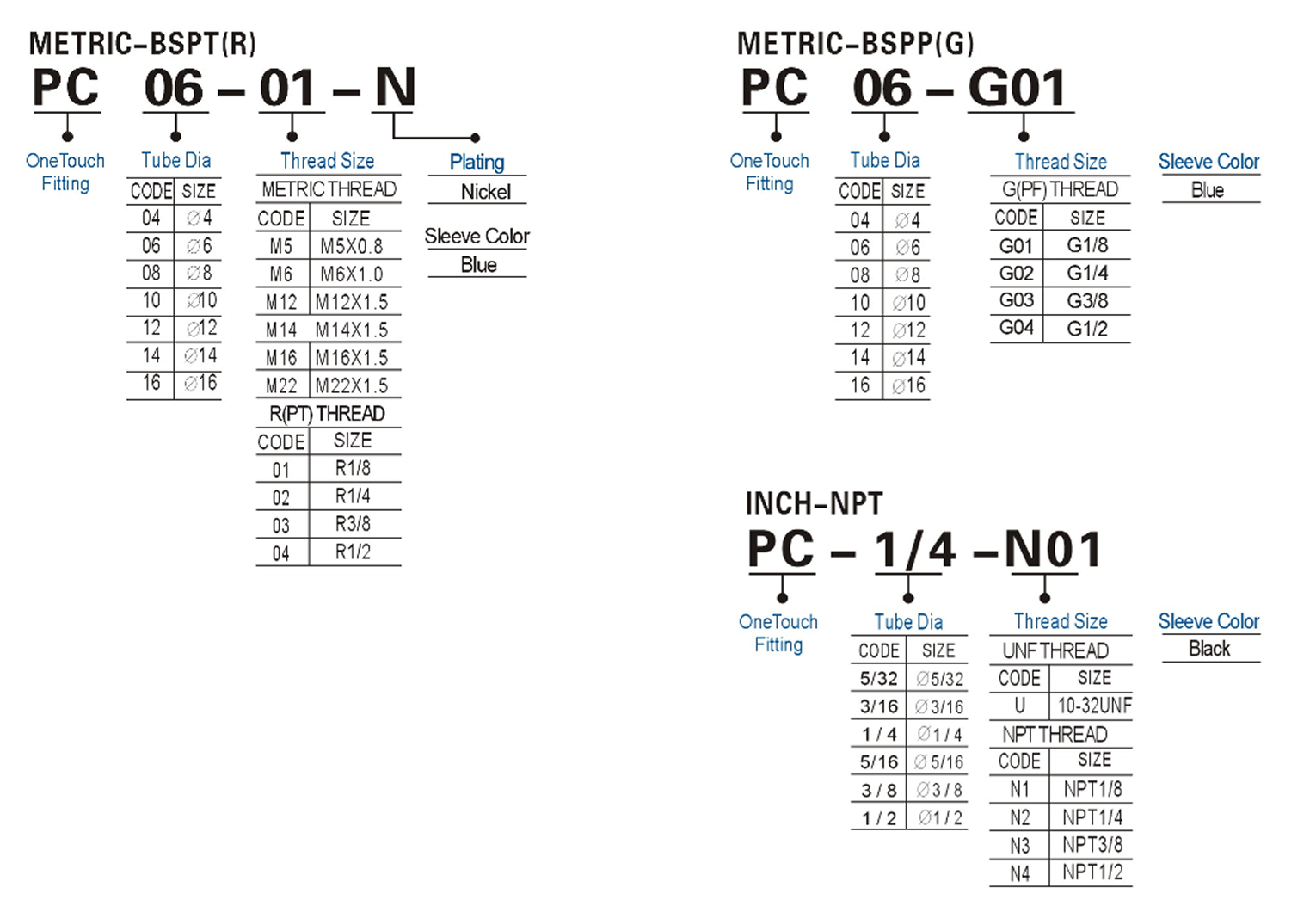

Coding system:
Model:
PC
Working temperature:
0℃/+60℃
Maximum operating pressure:
990 kPa
Material:
nickel-plated brass, PBT, NBR, stainless steel
Applicable medium:
compressed air, water
Use air tube:
polyurethane and nylon air tube
Suitable for pipe outer diameter: Ø4, Ø6, Ø8, Ø10, Ø12, Ø1/8, Ø5/32, Ø1/4, Ø5/16, Ø3/8, Ø1/2
Connection thread: R1/8, R1/4, R3/8, R1/2, 10-5/32, NPT1/8, NPT1/4, NPT3/8, NPT1/2
Precautions for using trachea pneumatic joints:
1. Before use, be sure to refer to the safety precautions, warning display classifications and general precautions for pipe fittings.
2. When inserting the pipe, be sure to insert it to the bottom of the joint. If the pipe is not inserted to the bottom, it may cause leakage.
3. After the pipes are connected, pull the pipes to make sure that the pipes cannot be pulled out of the joints.
4. Please do not use for purposes other than fluids. 5. Do not exceed the maximum operating pressure during use.
6. Do not use it outside the operating temperature range to prevent deformation of the sealing material, which may cause leakage.
7. Do not hit, bend or stretch it artificially to prevent damage.
8. Do not use in places mixed with metal powder or sand dust, as attachment of debris may cause malfunction or leakage.
2. When inserting the pipe, be sure to insert it to the bottom of the joint. If the pipe is not inserted to the bottom, it may cause leakage.
3. After the pipes are connected, pull the pipes to make sure that the pipes cannot be pulled out of the joints.
4. Please do not use for purposes other than fluids. 5. Do not exceed the maximum operating pressure during use.
6. Do not use it outside the operating temperature range to prevent deformation of the sealing material, which may cause leakage.
7. Do not hit, bend or stretch it artificially to prevent damage.
8. Do not use in places mixed with metal powder or sand dust, as attachment of debris may cause malfunction or leakage.
Notes when disassembling:
1. Use appropriate tools to disassemble the pipe joint using the outer hexagonal part of the pipe joint.
2. Remove the sealing material adhering to the opposite side of the pipe joint to prevent the adhering sealing material from entering the surrounding components and causing failure.
2. Remove the sealing material adhering to the opposite side of the pipe joint to prevent the adhering sealing material from entering the surrounding components and causing failure.
