Threaded quick-connect fittings

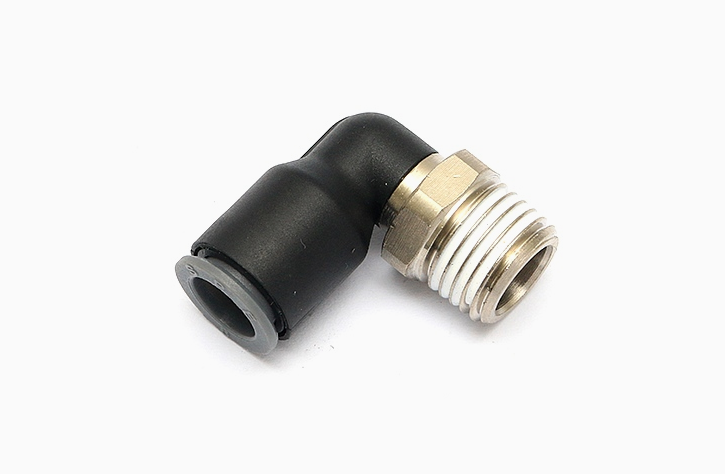

, L-shaped 90° elbow connector, compact size, plastic body made of nylon, high temperature and pressure resistance, burst pressure up to 5Mpa. Rotatable body, with pipeline installation, stainless steel clamp inside the connector can firmly fix the air pipe without damaging its surface. It can safely absorb vibration and pressure fluctuations. Nitrile rubber sealing ring can ensure complete sealing between standard outer diameter air pipe and connector body. Standard air pipe is suitable for use with compressed air and vacuum.
Product Content Introduction
Threaded quick-connect fitting, L-shaped 90° elbow fitting, compact size, plastic body made of nylon, high temperature and pressure resistance, burst pressure up to 5Mpa. The body can be rotated to match the installation of the pipeline, and the stainless steel clamp inside the fitting can firmly fix the air pipe without damaging its surface. It can safely absorb vibration and pressure fluctuations. The nitrile rubber sealing ring can ensure complete sealing between the standard outer diameter air pipe and the fitting body. Standard air pipes are suitable for use with compressed air and vacuum. According to research and testing, the threaded quick-connect fitting has a temperature of -20~+60℃ and an operating temperature of 0~10℃, with a maximum of 15Bar. The maximum working pressure is related to the type of plastic pipe it is matched with.
Product Features:
(1)Right angle connector/elbow connector/L-type two-way connector/BL right angle connector.
(2) The appearance is small and exquisite. The main body of the plastic part is made of engineering plastic, and the main body of the copper part is made of nickel-plated brass.
(3) The product has high temperature and pressure resistance, and the bursting pressure can reach 5Mpa.
(4) The main body can be rotated to facilitate the installation of pipelines at different angles.
(5) The pipe and the joint body can be rotated 360° without damaging the pipe, which is suitable for installation requirements at different angles.
(6) The nitrile rubber seal ensures a complete seal between standard outer diameter tubing and the connector body. Standard tubing is suitable for use with compressed air and vacuum.
(2) The appearance is small and exquisite. The main body of the plastic part is made of engineering plastic, and the main body of the copper part is made of nickel-plated brass.
(3) The product has high temperature and pressure resistance, and the bursting pressure can reach 5Mpa.
(4) The main body can be rotated to facilitate the installation of pipelines at different angles.
(5) The pipe and the joint body can be rotated 360° without damaging the pipe, which is suitable for installation requirements at different angles.
(6) The nitrile rubber seal ensures a complete seal between standard outer diameter tubing and the connector body. Standard tubing is suitable for use with compressed air and vacuum.
Specifications:
Scope of Application:
Compressed air, vacuum, water
Vacuum Capacity:
755mmHg (99% vacuum)
Operating Temperature:
-20~+60℃
Work Pressure:
When the working temperature is 0~10℃, the maximum is 15Bar. The maximum working pressure is related to the type of plastic pipe used.
Materials Used:
Engineering plastics, nickel-plated brass, nitrile rubber, stainless steel
Model:
BL
Working temperature:
-20℃/+60℃
Maximum operating pressure:
15 Bar
Material:
nickel-plated brass, engineering plastics, nitrile rubber
Applicable media:
compressed air, vacuum, water
Vacuum rated pressure:
755 mmHg (99% vacuum)

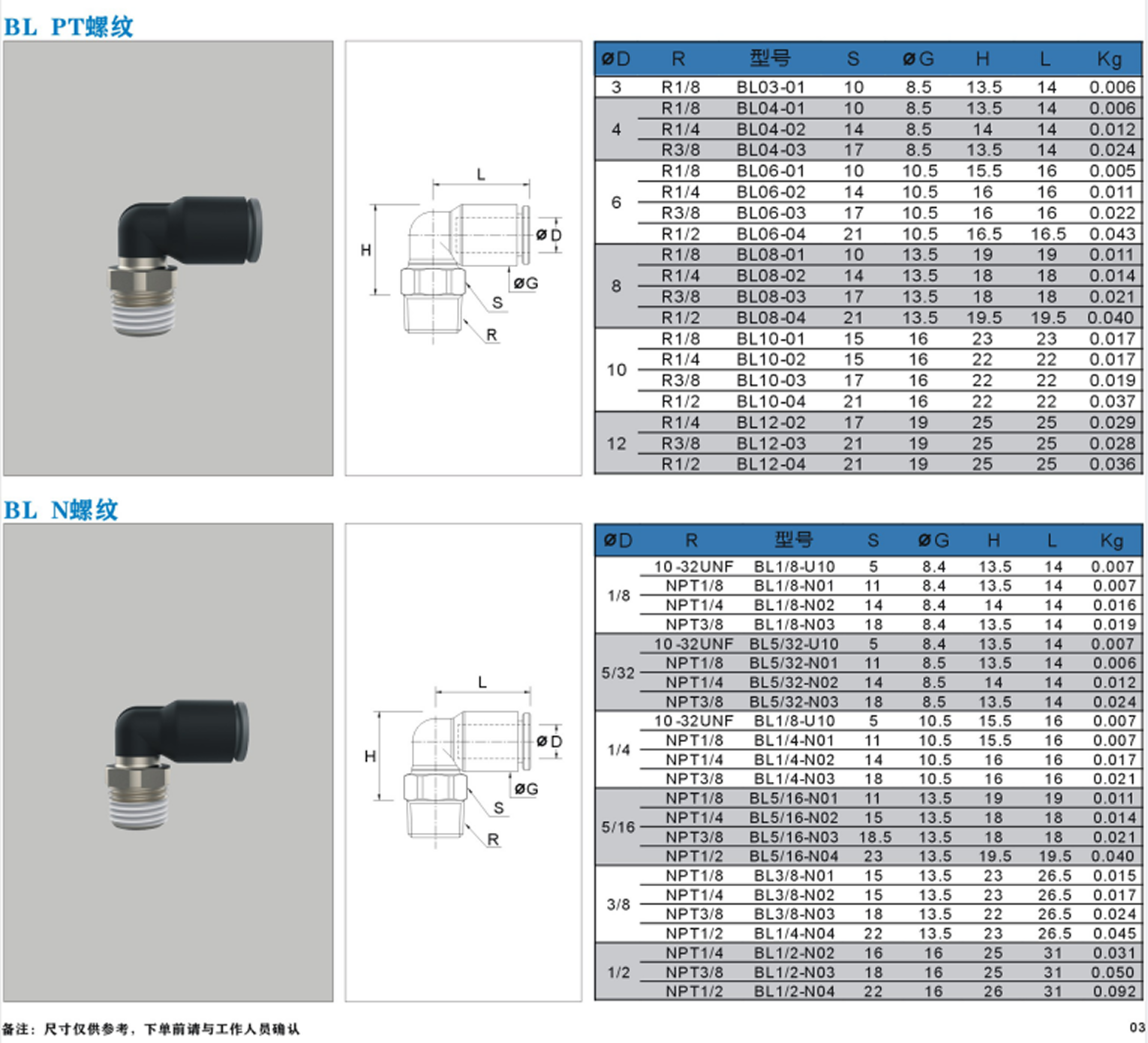

Suitable for pipe outer diameter: Ø4, Ø6, Ø8, Ø10, Ø12, Ø1/8, Ø5/32, Ø1/4, Ø5/16, Ø3/8, Ø1/2

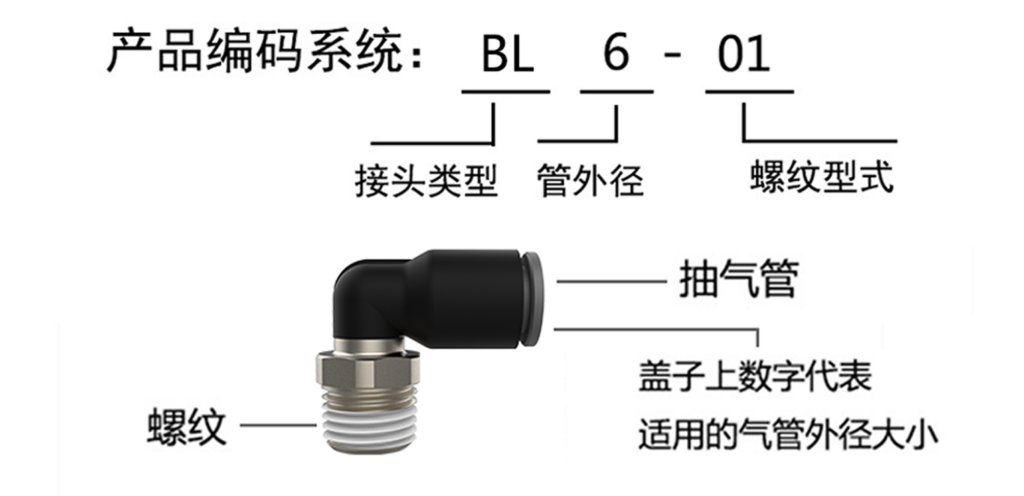

Connection thread: R1/8, R1/4, R3/8, R1/2, 10-5/32, NPT1/8, NPT1/4, NPT3/8, NPT1/2
Precautions for using trachea pneumatic joints:
1. Make sure that the cut surface of the pipe is vertical, there are no scratches on the outer circumference of the pipe, and the pipe is not oval.
2. When inserting the pipe, be sure to insert it to the bottom of the joint. If the pipe is not inserted to the bottom, it may cause leakage.
3. After the pipes are connected, pull the pipes to make sure that the pipes cannot be pulled out of the joints.
4. Please do not use for purposes other than fluids.
5. Do not exceed the maximum operating pressure during use.
6. Do not use it outside the operating temperature range to prevent deformation of the sealing material, which may cause leakage.
7. Do not hit, bend or stretch it artificially to prevent damage.
8. Do not use in places mixed with metal powder or sand dust, as attachment of debris may cause malfunction or leakage.
2. When inserting the pipe, be sure to insert it to the bottom of the joint. If the pipe is not inserted to the bottom, it may cause leakage.
3. After the pipes are connected, pull the pipes to make sure that the pipes cannot be pulled out of the joints.
4. Please do not use for purposes other than fluids.
5. Do not exceed the maximum operating pressure during use.
6. Do not use it outside the operating temperature range to prevent deformation of the sealing material, which may cause leakage.
7. Do not hit, bend or stretch it artificially to prevent damage.
8. Do not use in places mixed with metal powder or sand dust, as attachment of debris may cause malfunction or leakage.
Notes when disassembling:
1. Use appropriate tools to disassemble the pipe joint using the outer hexagonal part of the pipe joint.
2. Remove the sealing material adhering to the opposite side of the pipe joint to prevent the adhering sealing material from entering the surrounding components and causing failure.
2. Remove the sealing material adhering to the opposite side of the pipe joint to prevent the adhering sealing material from entering the surrounding components and causing failure.
