Straight quick-connect fittings

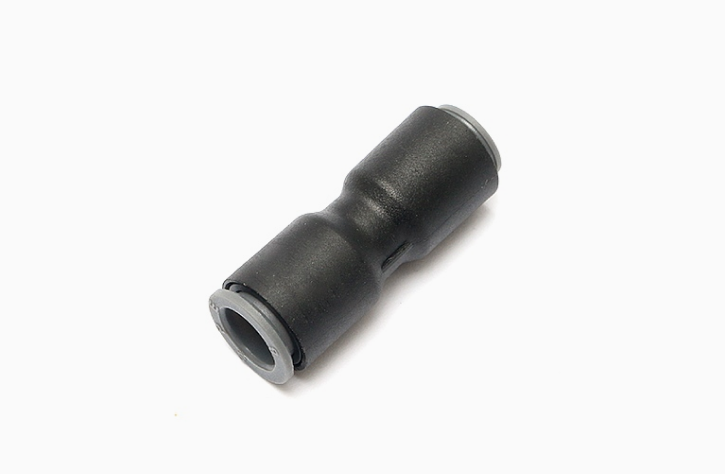

Legris pneumatic connector – 3106 straight connector. Copper plastic connector, the main body is made of engineering plastics, which is pressure and low temperature resistant, acid and alkali resistant, and widely used in chemical, medical, textile and other industries. The pipe and the connector body can be rotated without damaging the pipe, which is suitable for installation requirements at different angles. There are a wide range of types and applications, suitable for various work occasions: there are various shapes and complete sizes.
Product Contents
Product Features:
(1) Legris pneumatic connector, 3106 plastic straight connector.
(2) The product is acid and alkali resistant and has a wide range of applications, including chemical, medical, textile and other industries.
(3) High pressure resistance, the main plastic part is made of nylon material, the bursting pressure can reach 5Mpa, suitable for trial installation of high-strength equipment such as automotive pneumatics.
(4) The pipe and the joint body can be rotated 360° without damaging the pipe, which is suitable for installation requirements at different angles.
(5) Positive and negative pressure are the same, and it is more suitable for vacuum equipment to reduce pressure release and achieve energy saving.
(6) Integrated design ensures reliable connection
(7) It can extend the service life of the system.
(2) The product is acid and alkali resistant and has a wide range of applications, including chemical, medical, textile and other industries.
(3) High pressure resistance, the main plastic part is made of nylon material, the bursting pressure can reach 5Mpa, suitable for trial installation of high-strength equipment such as automotive pneumatics.
(4) The pipe and the joint body can be rotated 360° without damaging the pipe, which is suitable for installation requirements at different angles.
(5) Positive and negative pressure are the same, and it is more suitable for vacuum equipment to reduce pressure release and achieve energy saving.
(6) Integrated design ensures reliable connection
(7) It can extend the service life of the system.
Specifications:
Scope of application
Compressed air, vacuum, water
Vacuum Capacity
755mmHg (99% vacuum)
Operating temperature
-20~+60℃
Work Pressure
When the working temperature is 0~10℃, it can reach 15Bar. The specific working pressure is related to the type of plastic pipe used.
Materials used
Engineering plastics, nitrile rubber, stainless steel

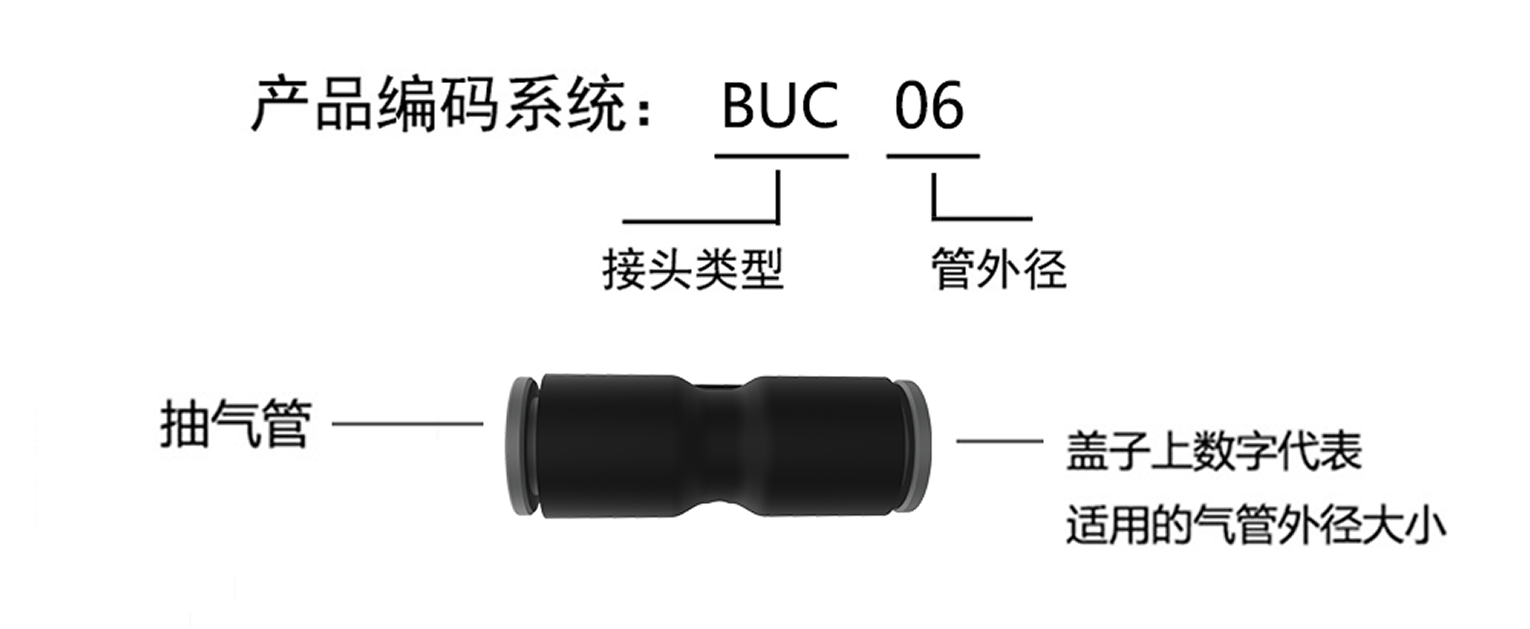

Model:
BUC
Working temperature:
-20℃/+60℃
Maximum operating pressure:
15 Bar
Material:
engineering plastics, nitrile rubber
Applicable media:
compressed air, vacuum, water
Vacuum rated pressure:
755 mmHg (99% vacuum)
Suitable for pipe outer diameter: Ø4, Ø6, Ø8, Ø10, Ø12, Ø1/8, Ø5/32, Ø1/4, Ø5/16, Ø3/8, Ø1/2
Precautions for using trachea pneumatic joints:
1. Make sure that the cut surface of the pipe is vertical, there are no scratches on the outer circumference of the pipe, and the pipe is not oval.
2. When inserting the pipe, be sure to insert it to the bottom of the joint. If the pipe is not inserted to the bottom, it may cause leakage.
3. After the pipes are connected, pull the pipes to make sure that the pipes cannot be pulled out of the joints.
4. Please do not use for purposes other than fluids.
5. Do not exceed the maximum operating pressure during use.
6. Do not use it outside the operating temperature range to prevent deformation of the sealing material, which may cause leakage.
7. Do not hit, bend or stretch it artificially to prevent damage.
8. Do not use in places mixed with metal powder or sand dust, as attachment of debris may cause malfunction or leakage.
2. When inserting the pipe, be sure to insert it to the bottom of the joint. If the pipe is not inserted to the bottom, it may cause leakage.
3. After the pipes are connected, pull the pipes to make sure that the pipes cannot be pulled out of the joints.
4. Please do not use for purposes other than fluids.
5. Do not exceed the maximum operating pressure during use.
6. Do not use it outside the operating temperature range to prevent deformation of the sealing material, which may cause leakage.
7. Do not hit, bend or stretch it artificially to prevent damage.
8. Do not use in places mixed with metal powder or sand dust, as attachment of debris may cause malfunction or leakage.
Notes when disassembling:
1. Use appropriate tools to disassemble the pipe joint using the outer hexagonal part of the pipe joint.
2. Remove the sealing material adhering to the opposite side of the pipe joint to prevent the adhering sealing material from entering the surrounding components and causing failure.
2. Remove the sealing material adhering to the opposite side of the pipe joint to prevent the adhering sealing material from entering the surrounding components and causing failure.
