Internal thread straight
Our internal thread straight connector adopts Sino-European cooperation technology, and has been upgraded in material and product structure. The product can withstand low temperature: -20℃/+60℃. High pressure resistance: the bursting pressure can reach 5Mpa. The connector does not damage the pipe after insertion, and the pipe can be rotated 360 degrees with the connector, which is suitable for installation in various environments.
Product Content Introduction
Product Features:
1) Legris pneumatic connector, 3114 female thread straight connector.
(2) The appearance is small and exquisite. The main body of the plastic part is made of engineering plastic, and the main body of the copper part is made of nickel-plated brass.
(3) The product is resistant to low temperature and high pressure, and the bursting pressure can reach 5Mpa.
(4) The main body can be rotated to facilitate the installation of pipelines at different angles.
(5) The pipe and the joint body can be rotated 360° without damaging the pipe, which is suitable for installation requirements at different angles.
(6) The nitrile rubber seal ensures a complete seal between standard outer diameter tubing and the connector body. Standard tubing is suitable for use with compressed air and vacuum.
(2) The appearance is small and exquisite. The main body of the plastic part is made of engineering plastic, and the main body of the copper part is made of nickel-plated brass.
(3) The product is resistant to low temperature and high pressure, and the bursting pressure can reach 5Mpa.
(4) The main body can be rotated to facilitate the installation of pipelines at different angles.
(5) The pipe and the joint body can be rotated 360° without damaging the pipe, which is suitable for installation requirements at different angles.
(6) The nitrile rubber seal ensures a complete seal between standard outer diameter tubing and the connector body. Standard tubing is suitable for use with compressed air and vacuum.
Specifications:
Scope of application
Compressed air, vacuum, water
Vacuum Capacity
755mmHg (99% vacuum)
Operating temperature
-20~+60℃
Work Pressure
When the working temperature is 0~10℃, it can reach 15Bar. The specific working pressure is related to the type of plastic pipe used.
Materials used
Engineering plastics, nickel-plated brass, nitrile rubber, stainless steel

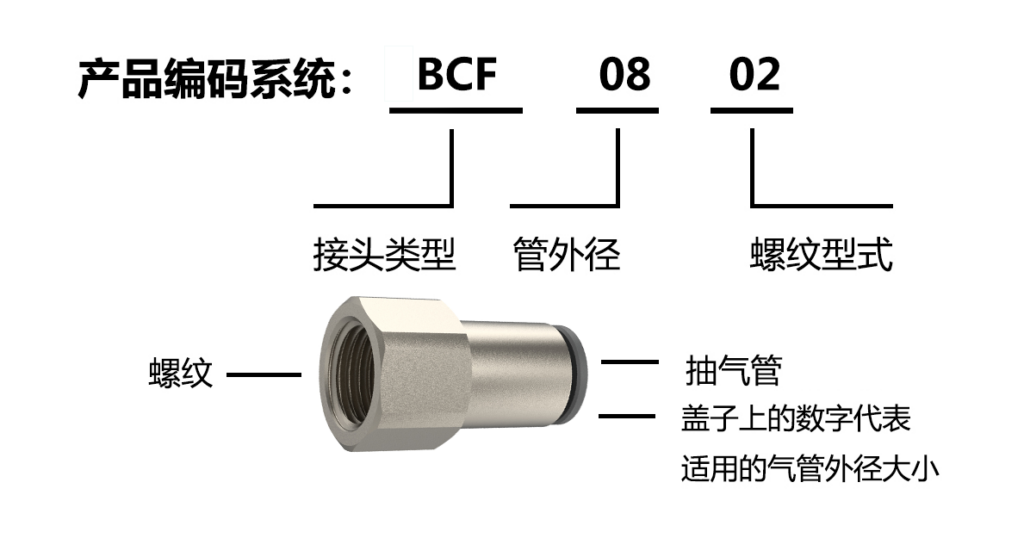

Model:
BCF
Working temperature:
-20℃/+60℃
Maximum operating pressure:
15 Bar
Material:
nickel-plated brass, engineering plastics, nitrile rubber
Applicable media:
compressed air, vacuum, water
Vacuum rated pressure:
755 mmHg (99% vacuum)
Suitable for pipe outer diameter: Ø4, Ø6, Ø8, Ø10, Ø12, Ø1/8, Ø5/32, Ø1/4, Ø5/16, Ø3/8, Ø1/2
Connection thread: R1/8, R1/4, R3/8, R1/2, 10-5/32, NPT1/8, NPT1/4, NPT3/8, NPT1/2
Precautions for using trachea pneumatic joints:
1. Make sure that the cut surface of the pipe is vertical, there are no scratches on the outer circumference of the pipe, and the pipe is not oval.
2. When inserting the pipe, be sure to insert it to the bottom of the joint. If the pipe is not inserted to the bottom, it may cause leakage.
3. After the pipes are connected, pull the pipes to make sure that the pipes cannot be pulled out of the joints.
4. Please do not use for purposes other than fluids.
5. Do not exceed the maximum operating pressure during use.
6. Do not use it outside the operating temperature range to prevent deformation of the sealing material, which may cause leakage.
7. Do not hit, bend or stretch it artificially to prevent damage.
8. Do not use in places mixed with metal powder or sand dust, as attachment of debris may cause malfunction or leakage.
2. When inserting the pipe, be sure to insert it to the bottom of the joint. If the pipe is not inserted to the bottom, it may cause leakage.
3. After the pipes are connected, pull the pipes to make sure that the pipes cannot be pulled out of the joints.
4. Please do not use for purposes other than fluids.
5. Do not exceed the maximum operating pressure during use.
6. Do not use it outside the operating temperature range to prevent deformation of the sealing material, which may cause leakage.
7. Do not hit, bend or stretch it artificially to prevent damage.
8. Do not use in places mixed with metal powder or sand dust, as attachment of debris may cause malfunction or leakage.
Notes when disassembling:
1. Use appropriate tools to disassemble the pipe joint using the outer hexagonal part of the pipe joint.
2. Remove the sealing material adhering to the opposite side of the pipe joint to prevent the adhering sealing material from entering the surrounding components and causing failure.
2. Remove the sealing material adhering to the opposite side of the pipe joint to prevent the adhering sealing material from entering the surrounding components and causing failure.
